Overview

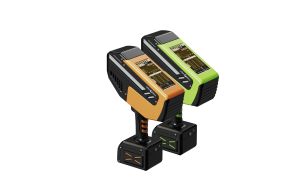

The iSpecField-(W)NIR-HH family combines VNIR/SWIR spectral sensing with synchronized target imaging in a handheld field instrument. Two configurations cover 350-1700 nm and 350-2500 nm, supporting field measurements for mineral exploration, geological mapping, soil analysis, environmental monitoring, and related remote-sensing applications.
Each model uses a fixed holographic-grating optical design and pairs a 2048-pixel CMOS detector with a 256- or 512-pixel InGaAs detector. An integrated 8 MP camera records the measurement target alongside the spectrum, helping field teams keep spectral data and site imagery together during acquisition and review.
Automatic shutter control, dynamic compensation, and one-touch measurement simplify field workflows. The IP5X housing and fully sealed IP6X optical core are designed for dependable operation in demanding outdoor environments.
Typical Applications
Key Advantages
- Broad spectral coverage: Choose a 350-1700 nm or 350-2500 nm configuration for visible, near-infrared, and shortwave-infrared field measurements.
- Integrated imaging: The 8 MP camera captures synchronized target imagery for clearer field records and data traceability.
- Smart acquisition: Automatic shutter control, dynamic compensation, and one-touch measurement support efficient field work.
- Rugged field design: The IP5X housing and IP6X sealed optical core support reliable operation in demanding environments.
- AI mineral identification: Built-in matching supports more than 380 minerals, ranked results, and user-defined spectral libraries.
- Advanced spectral analysis: SpecAnalysis supports ENVI-compatible export, the USGS spectral library, and more than 40 vegetation indices.
- Flexible connectivity: USB Type-C is standard, with optional Wi-Fi and 4G data transfer.
- Real-time display: A 5.5-inch industrial touchscreen shows spectra and analysis results during measurement.

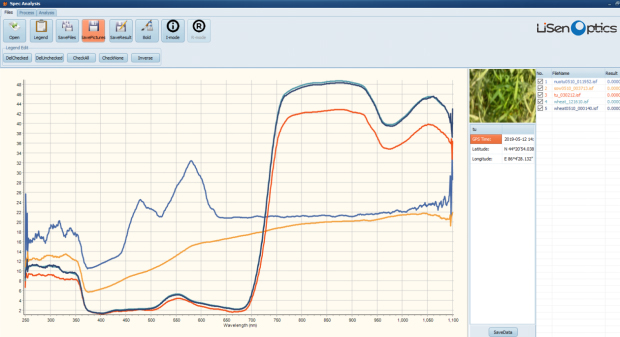

SpecAnalysis Spectral Analysis Software
SpecAnalysis provides post-processing and review tools for field spectra, including reflectance display, wavelength-specific analysis, vegetation-index calculations, ENVI-compatible export, and access to the USGS spectral library.
Parameter
Technical Specifications
| Parameter | iSpecField-NIR-HH | iSpecField-WNIR-HH |
|---|---|---|

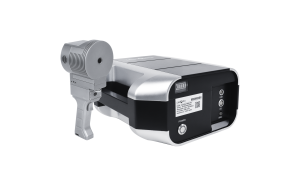

| Product Image |
 |
|
| Wavelength Range | 350-1700 nm | 350-2500 nm |
| Wavelength Accuracy | ≤±0.5 nm | ≤±0.5 nm |
| Wavelength Reproducibility | ±0.5 nm | ±0.5 nm |
| Spectral Resolution | ≤3 nm @ 350-1100 nm; ≤8 nm @ 1100-1700 nm | ≤3 nm @ 350-1100 nm; ≤7 nm @ 1100-2500 nm |
| Spectral Wavelength Sampling Interval | 1 nm @ 350-1100 nm; 1 nm @ 1100-1700 nm | 1 nm @ 350-1100 nm; 1 nm @ 900-1700 nm; 1 nm @ 1700-2500 nm |
| Spectral Channels | 1350 | 2150 |
| Noise Equivalent Radiance (NER) | 1.0 × 10^-8 W/cm²/nm/sr @ 700 nm; 8.0 × 10^-8 W/cm²/nm/sr @ 1500 nm | 1.0 × 10^-8 W/cm²/nm/sr @ 700 nm; 3.0 × 10^-8 W/cm²/nm/sr @ 1500 nm; 6.0 × 10^-8 W/cm²/nm/sr @ 2500 nm |
| Detector | 2048-pixel CMOS / 256-pixel InGaAs | 2048-pixel CMOS / 512-pixel InGaAs |
| Minimum Integration Time | ≥6 ms | ≥500 ms |
| Battery Life | ≥3 hours (removable) | ≥3.5 hours (removable) |
| Scan Mode | Fixed holographic-grating spectrograph | Fixed holographic-grating spectrograph |
| Built-in Functions | GPS, 8 MP autofocus HD camera, temperature and humidity sensor | GPS, 8 MP autofocus HD camera, temperature and humidity sensor |
| Storage | 256GB | 256GB |
| AI Mineral Spectral Classification | Spectral matching using SAM, SFF, and SID algorithms combined with LiSen Optics deep learning models. Includes the USGS spectral library, supports classification of 380+ mineral types, returns the top 10 matches ranked by similarity, and supports user-defined spectral libraries. | Spectral matching using SAM, SFF, and SID algorithms combined with LiSen Optics deep learning models. Includes the USGS spectral library, supports classification of 380+ mineral types, returns the top 10 matches ranked by similarity, and supports user-defined spectral libraries. |
| Acquisition Mode | PDA-style capacitive touchscreen | PDA-style capacitive touchscreen |
| Touchscreen Size | 5.5-inch | 5.5-inch |
| Field Reflectance Probe | Built-in self-compensating optical path with internal reference spectrum. Automatic dark-current correction, white-reference calibration, and reference storage. The internal calibration system reduces spectral noise and wavelength drift. IP67-rated sealed housing for dust and water resistance. | Built-in self-compensating optical path with internal reference spectrum. Automatic dark-current correction, white-reference calibration, and reference storage. The internal calibration system reduces spectral noise and wavelength drift. IP67-rated sealed housing for dust and water resistance. |
| Data Transfer | USB Type-C; optional Wi-Fi and 4G wireless data transfer | USB Type-C; optional Wi-Fi and 4G wireless data transfer |
| Spectral Software | Real-time display of reflectance spectra, wavelength-specific reflectance, and integrated reflectance. Supports CIE 1976 L*a*b* color measurements and more than 40 vegetation indices, including NDVI, DVI, EVI, CARI, PRI, RDVI, RVI, SAVI, SIPI, TVI, WI, VARI_700, and VARI_green. Compatible with on-device iSpecField acquisition software and SpecAnalysis post-processing software. Supports ENVI-compatible export and includes the USGS spectral library. | Real-time display of reflectance spectra, wavelength-specific reflectance, and integrated reflectance. Supports CIE 1976 L*a*b* color measurements and more than 40 vegetation indices, including NDVI, DVI, EVI, CARI, PRI, RDVI, RVI, SAVI, SIPI, TVI, WI, VARI_700, and VARI_green. Compatible with on-device iSpecField acquisition software and SpecAnalysis post-processing software. Supports ENVI-compatible export and includes the USGS spectral library. |
| Dimensions / Weight | 400 × 277 × 110 mm / 3.5 kg | 400 × 277 × 110 mm / 3.5 kg |
| Operating Temperature | -20°C to 40°C | -20°C to 40°C |
